Bottle Water Production Line

Capacity: 2,000 – 24,000 bottles per hour (500ml), covering small start-up plants to high-speed fully automatic lines.

Highlights: Washing – Filling – Capping 3-in-1 monoblock; all liquid contact parts are food-grade SUS304; transmission gears use hardened A4 carbon steel; PLC touch-screen control with stable and reliable running.

Suitable for: new bottled water plants, mineral water / purified water producers upgrading from semi-automatic equipment, and beverage groups building complete turnkey production lines.

Get A Quote

Download

Product Description

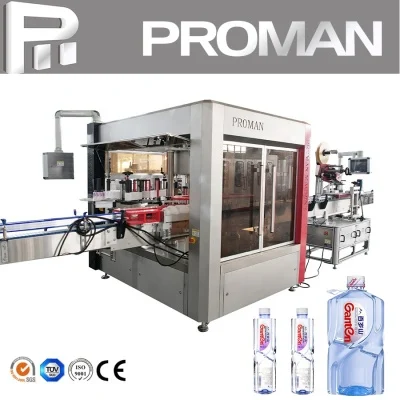

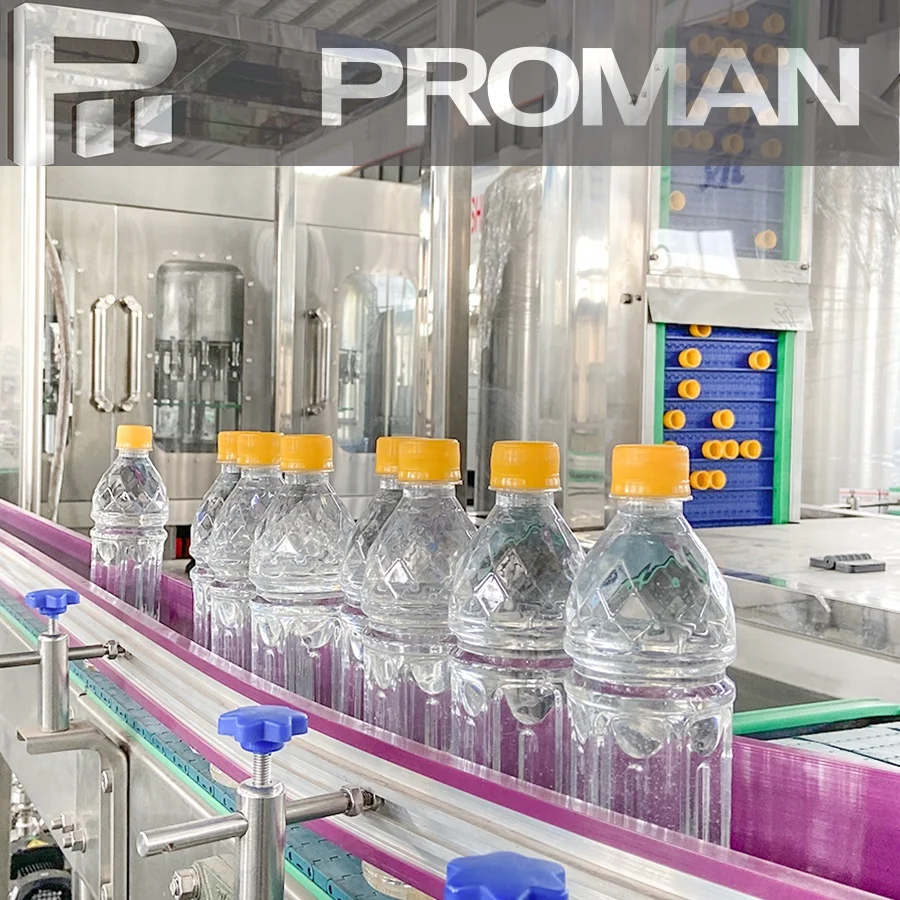

Complete 3-in-1 Bottled Water Production Line

The material which contacts the liquid directly is food-grade SUS304, and the transmission mechanism and gears are equipped with hardened A4 carbon steel, ensuring long-term stable operation and hygienic filling.

The washing–filling–capping 3-in-1 monoblock is mainly used for bottled water production. Bottle conveying adopts hanging neck clamping design, which makes size changing fast and running stable without tipping bottles.

Equipped with PLC touch-screen control, frequency conversion speed regulation and automatic lubrication, the line realizes fully automatic production from bottle washing to finished product conveying, and can be connected with water treatment, blow molding, labeling and packing machines to form a complete turnkey line.

Technical Specifications

Choose the right model by your target capacity — from CGF8 for start-up plants to CGF32 for high-speed lines. All models support bottle size changeover within the same frame.

Model	CGF8-8-3	CGF14-14-5	CGF18-18-6	CGF24-24-8	CGF32-32-10
Capacity (500ml BPH)	2,000	4,000	6,000	10,000	15,000
Filling Heads	8	14	18	24	32
Suitable Bottle Diameter	Ø50 – Ø95 mm (customizable)
Suitable Bottle Height	H150 – H310 mm (customizable)
Filling Accuracy	±1% (liquid level control)
Total Power	3.5 Kw	4.5 Kw	5.5 Kw	6.5 Kw	8.5 Kw
Air Pressure	0.7 MPa (clean, oil-free compressed air)
Water Consumption	1.2 T/h	1.8 T/h	2.5 T/h	3.5 T/h	4.5 T/h
Overall Dimension	2.3×1.6×2.5 m	2.8×1.9×2.5 m	3.2×2.2×2.6 m	3.8×2.8×2.6 m	4.5×3.3×2.8 m
Weight	2.8 T	3.5 T	4.2 T	5.5 T	7.0 T

Note: Customized voltage (380V/50Hz, 220V/60Hz, 415V/50Hz etc.) and bottle sizes are available on request.

Core Advantages

Hygienic SUS304 Design

All parts contacting liquid are food-grade SUS304 with sanitary piping, guaranteeing water quality from filling to capping.

Stable Transmission

Hardened A4 carbon steel gears and hanging neck conveying keep the line running smoothly with low noise and long service life.

Fast Bottle Changeover

No-bottle-tilt neck handling design allows different bottle sizes to run on one machine by simply changing guide parts.

PLC Intelligent Control

Touch screen with frequency conversion adjusts speed easily; faults self-diagnose and display on screen for quick maintenance.

High Filling Accuracy

Micro-negative pressure filling valve controls liquid level precisely within ±1%, reducing product waste.

Full Line Integration

Connectable with water treatment, blow molding, labeling and packing systems — one supplier for the whole turnkey project.

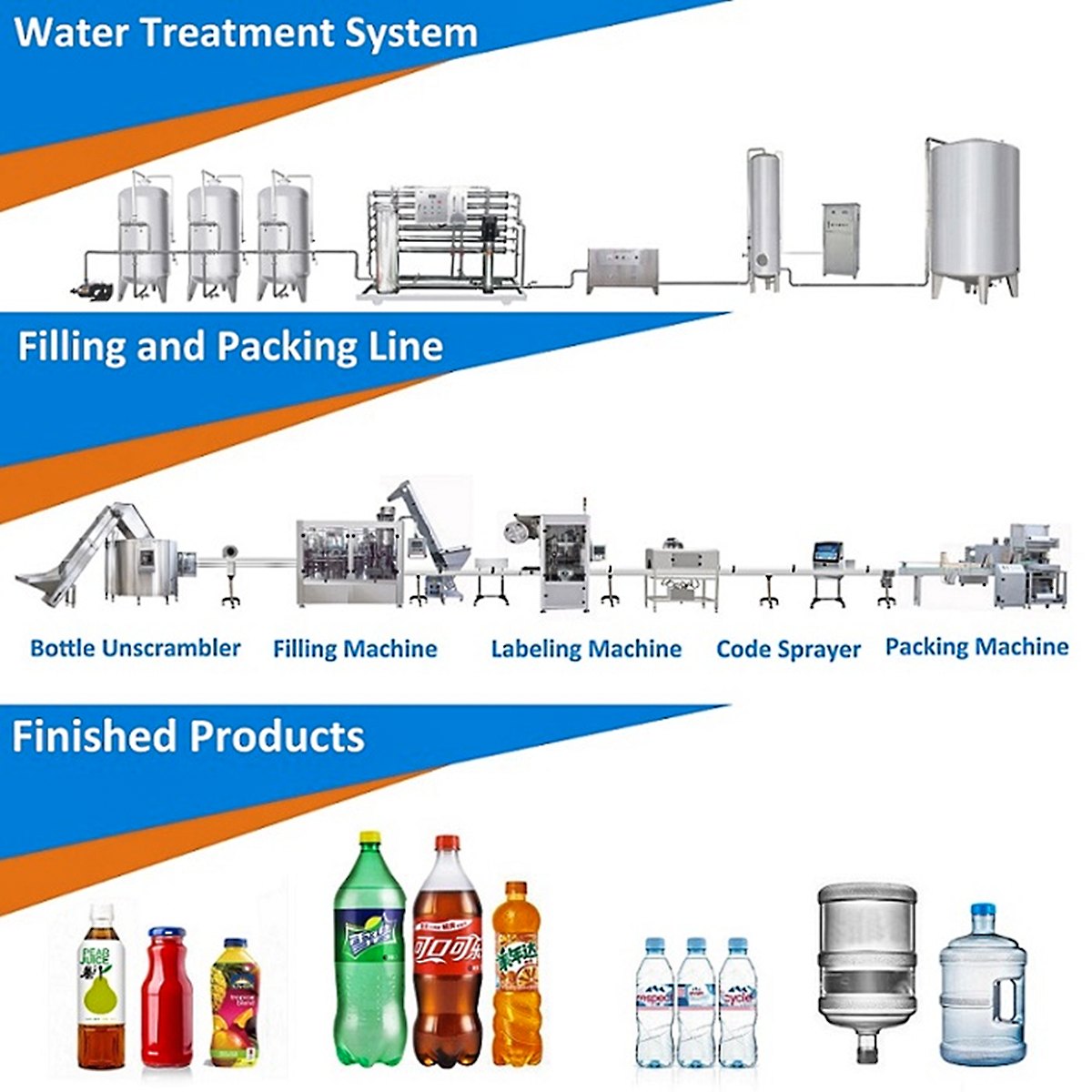

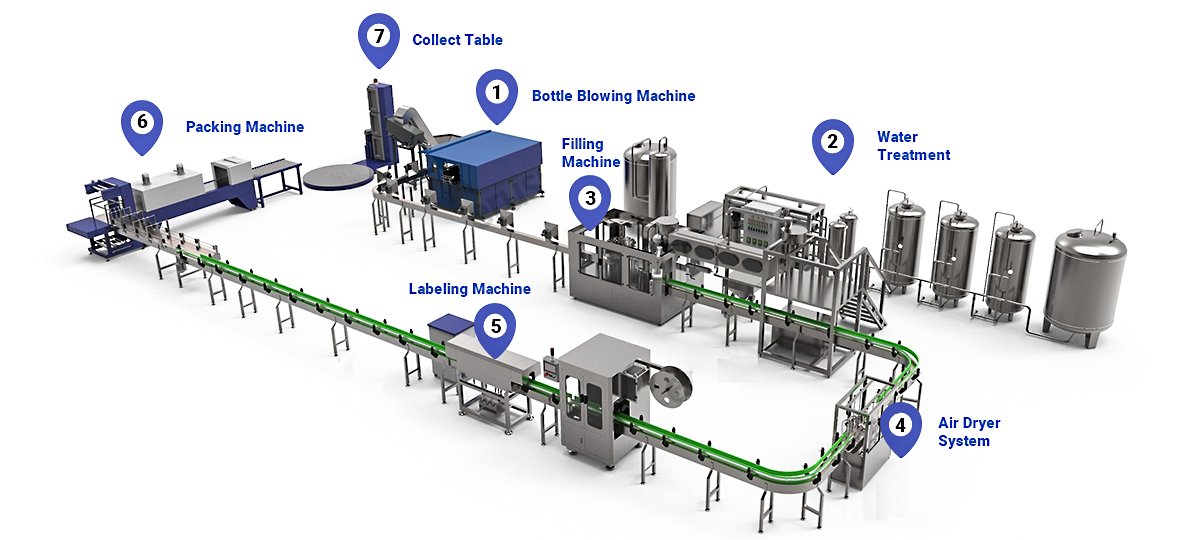

Process Flow

Complete line configuration from raw water to film-wrapped finished products.

Water Treatment System

Raw water filtered, RO purified and ozonized to reach drinking water standard.

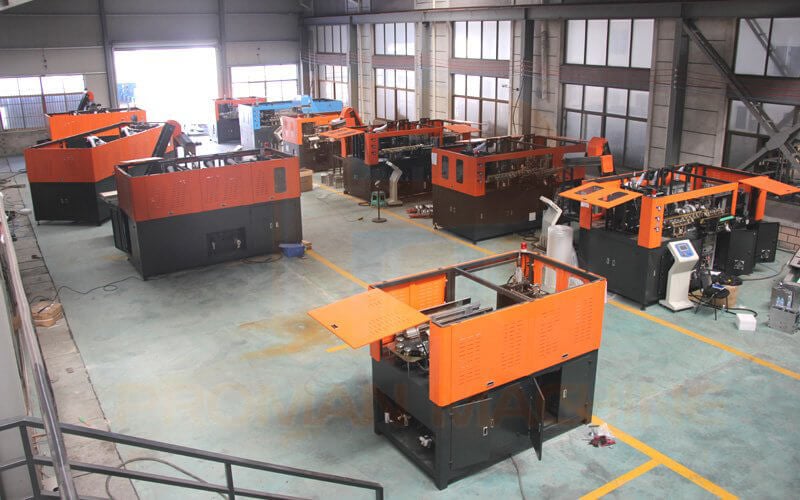

Bottle Blow Molding

PET preforms blown into bottles by semi-automatic or fully automatic blow machines.

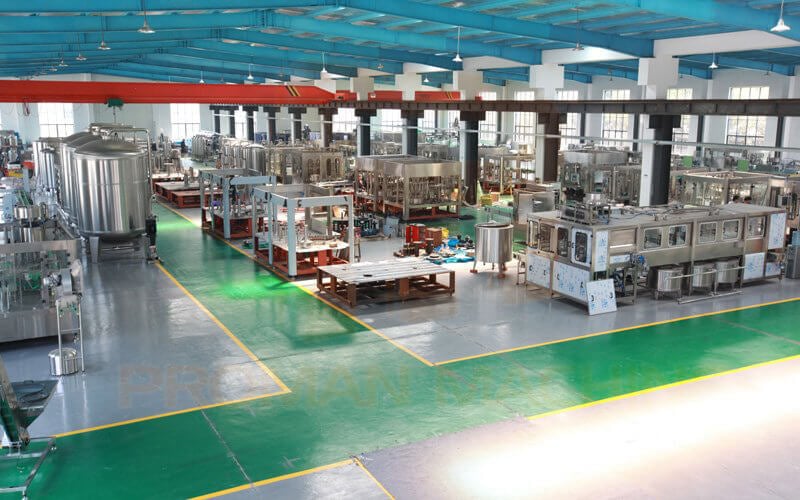

3-in-1 Filling Monoblock

Washing, filling and capping finished in one unit with hanging neck conveying.

Labeling & Coding

Sleeve / self-adhesive labeling with date coding for brand presentation.

Packing & Palletizing

Film shrink wrapping or carton packing, ready for warehouse and delivery.

Customization Capability

Water Treatment

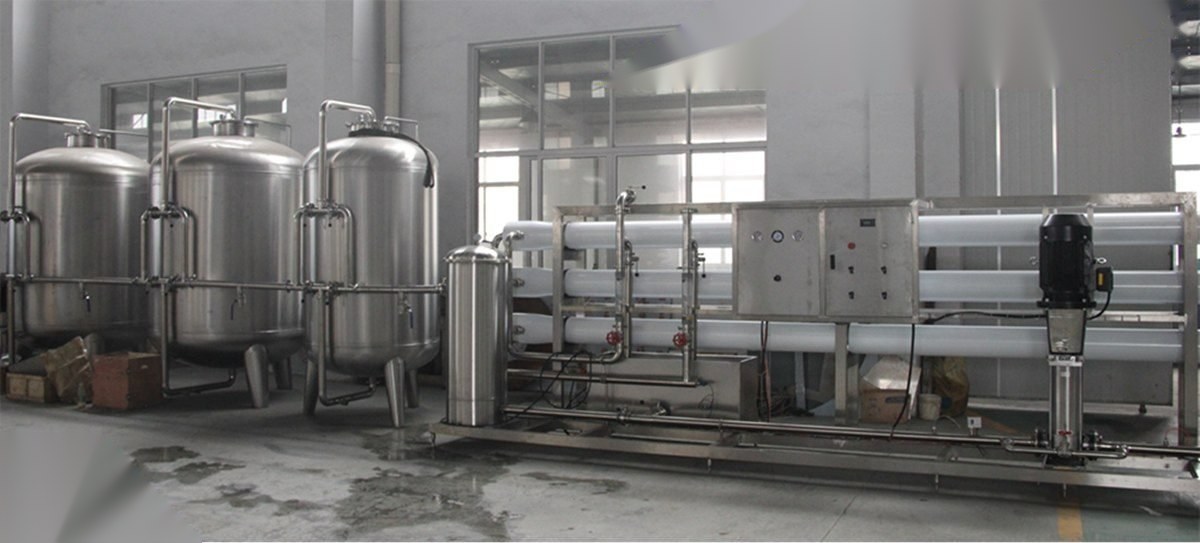

Water Treatment System

RO water filter system can treat tap water, well water, brackish water and sea water. This water filter can be used for drinking water, bottled water and industrial. Water filter using the advanced skills of reverse osmosis to purifying water. The RO membrane of this water filter is USA Hydranautics, this is the best RO membrane brand.

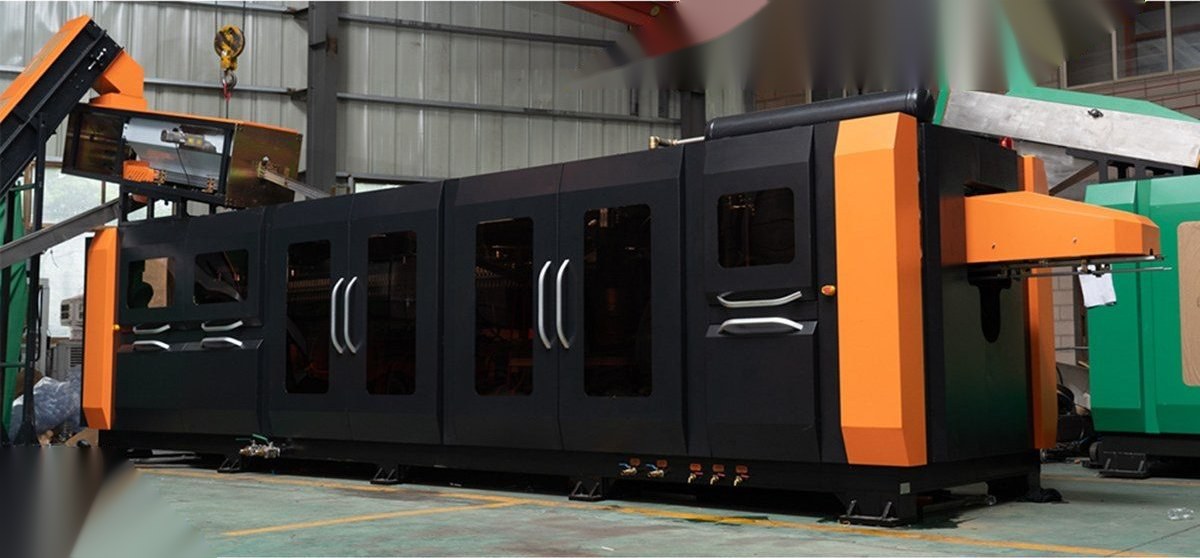

Bottle Blowing Machine

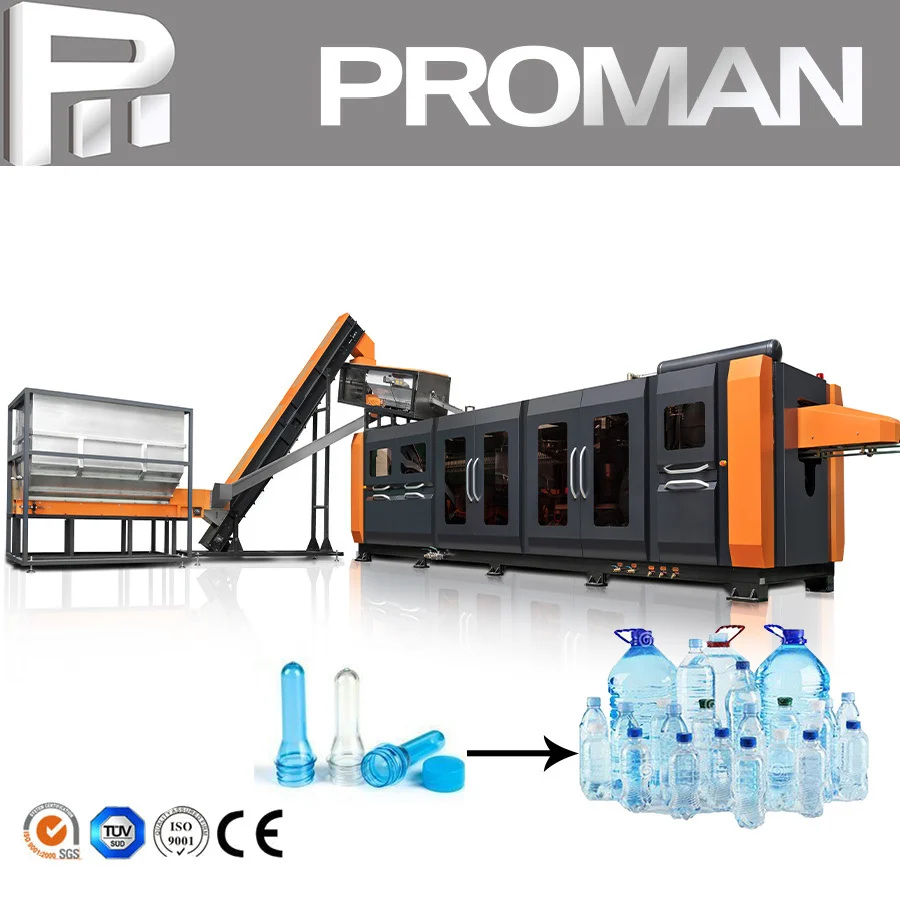

The automatic PET blow molding machine is suitable for the production of 0.1L -2.0L plastic containers as well as round and square bottles. This machine automatically loading preforms and blowing.

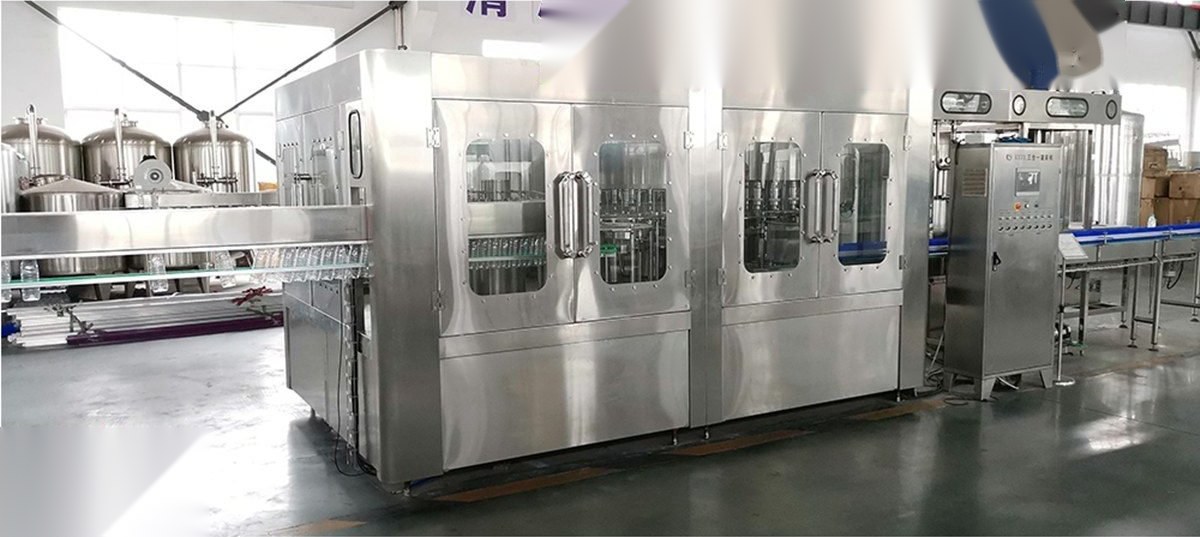

Water Filling Machine

Our filling machines are widely used for bottling water, carbonated drink, juice. It contains washing, filling and capping procedure. Suitable for PET bottle, PE bottle and galss bottle size from 200ml to 2L.

Labeling Machine

The fully automatic PVC shrink labeling machine is suitable for labels of various commodities and adopts the principle of PVC label shrinkage. Suitable for labeling medium-capacity goods.

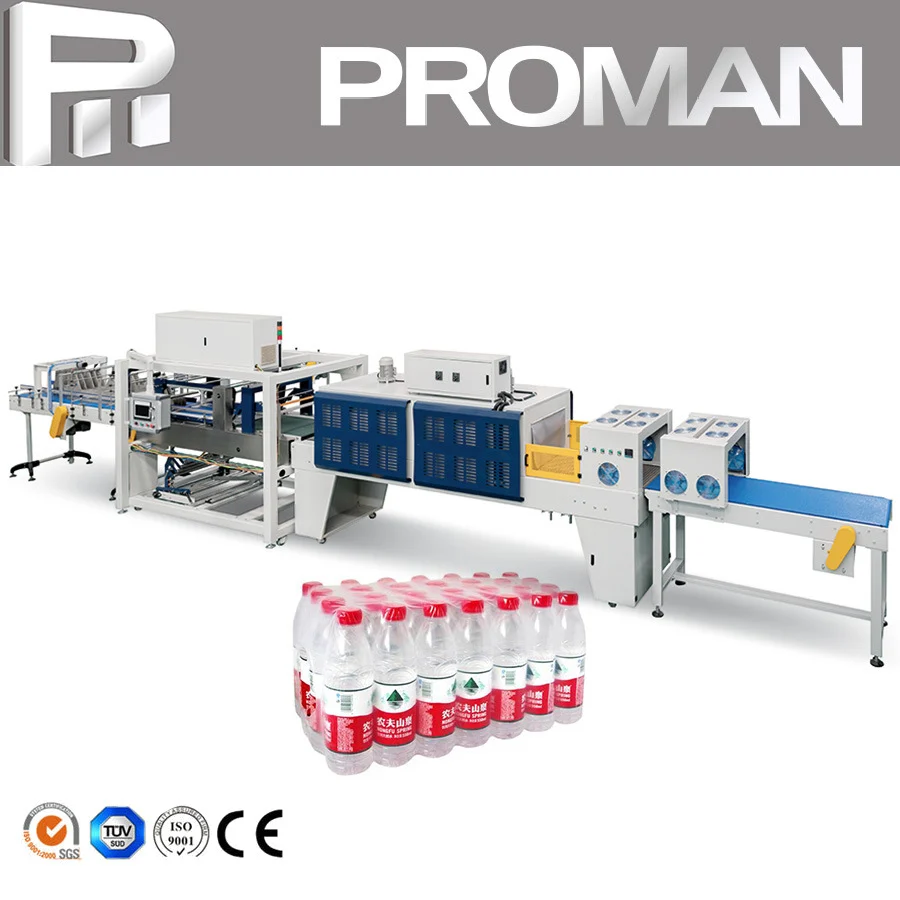

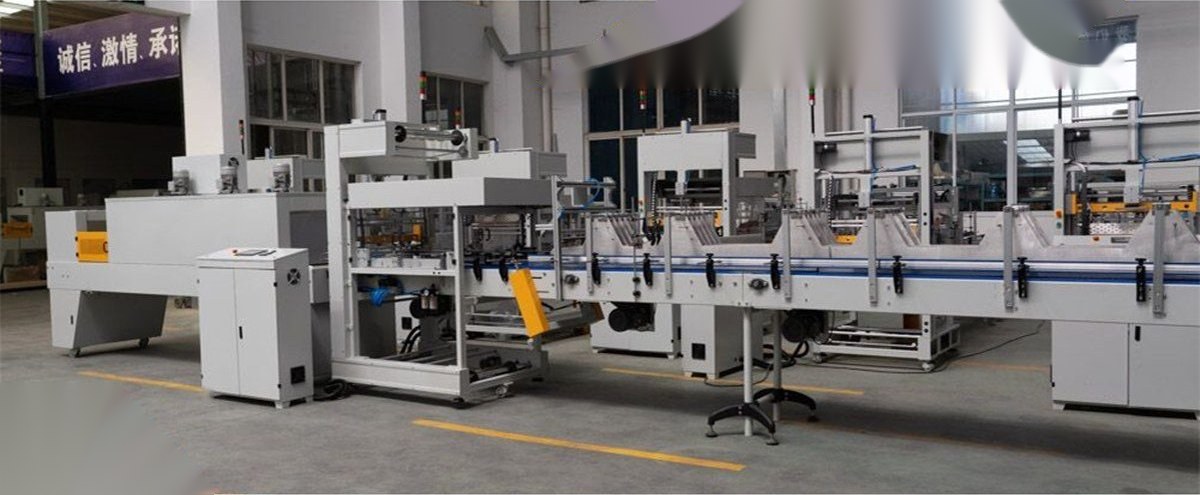

Packing Machine

This machine is used in the combinations package of mineral water, juice, carbonated drinks, flavor beverage, and shampoo, laundry liquid, shower gel, etc. It's a non-bottom packaging type.

— FAQS —

Frequently Asked Questions

What does this production line include?

A complete line covers water treatment, bottle blow molding, the washing-filling-capping 3-in-1 monoblock, labeling, date coding and film/carton packing. Each section can also be purchased separately to upgrade your existing workshop.

Why choose a 3-in-1 monoblock instead of separate machines?

The monoblock transfers bottles by hanging necks without intermediate storage, which saves factory space, avoids second contamination between processes, reduces bottle falling, and simplifies operation and maintenance compared with three separate connected machines.

Can the line be retrofitted for new bottle shapes later?

Yes. The machine frame accepts a bottle diameter of 50–95mm and height of 150–310mm. Changing guide parts and star wheels is enough for a new bottle size, and we supply the changeover parts together with the line.

Do you provide turnkey supporting service?

Yes. From factory layout drawing, equipment matching and pipeline design to on-site installation, commissioning and operator training, PROMAN delivers the whole project as one contract with one contact window.

How strong is PROMAN's brand strength?

PROMAN has manufactured beverage machinery since 1998 in Zhangjiagang City near Shanghai. Over 500 production lines are running in more than 80 countries, supported by an experienced office and engineer team.

What about warranty and global after-sales policy?

The line is covered by a 2-year warranty for core components. Service includes 7 days a week online support, 24-hour spare parts delivery by DHL, and engineers available to fly to your factory for installation and training.
