4000BPH Water Filling Machine
Compact 3-in-1 monoblock for start-up water plants, washing filling
capping
in one unit.
6000BPH Water Filling Machine
Stable middle-capacity line with PLC control and automatic lubrication
system.
10000BPH Water Filling Machine
High speed filling valves with stainless steel contact parts, CIP ready.
12000BPH Juice Filling Machine
Hot-fill version for juice and tea drinks with cap sterilizing tunnel.
15000BPH Carbonated Drink Filling Machine
Isobaric filling valves keep CO2 loss below 2% at high speed.
20000BPH Full Automatic Filling Line
Complete line from preform depalletizer to film packing, one operator is
enough.

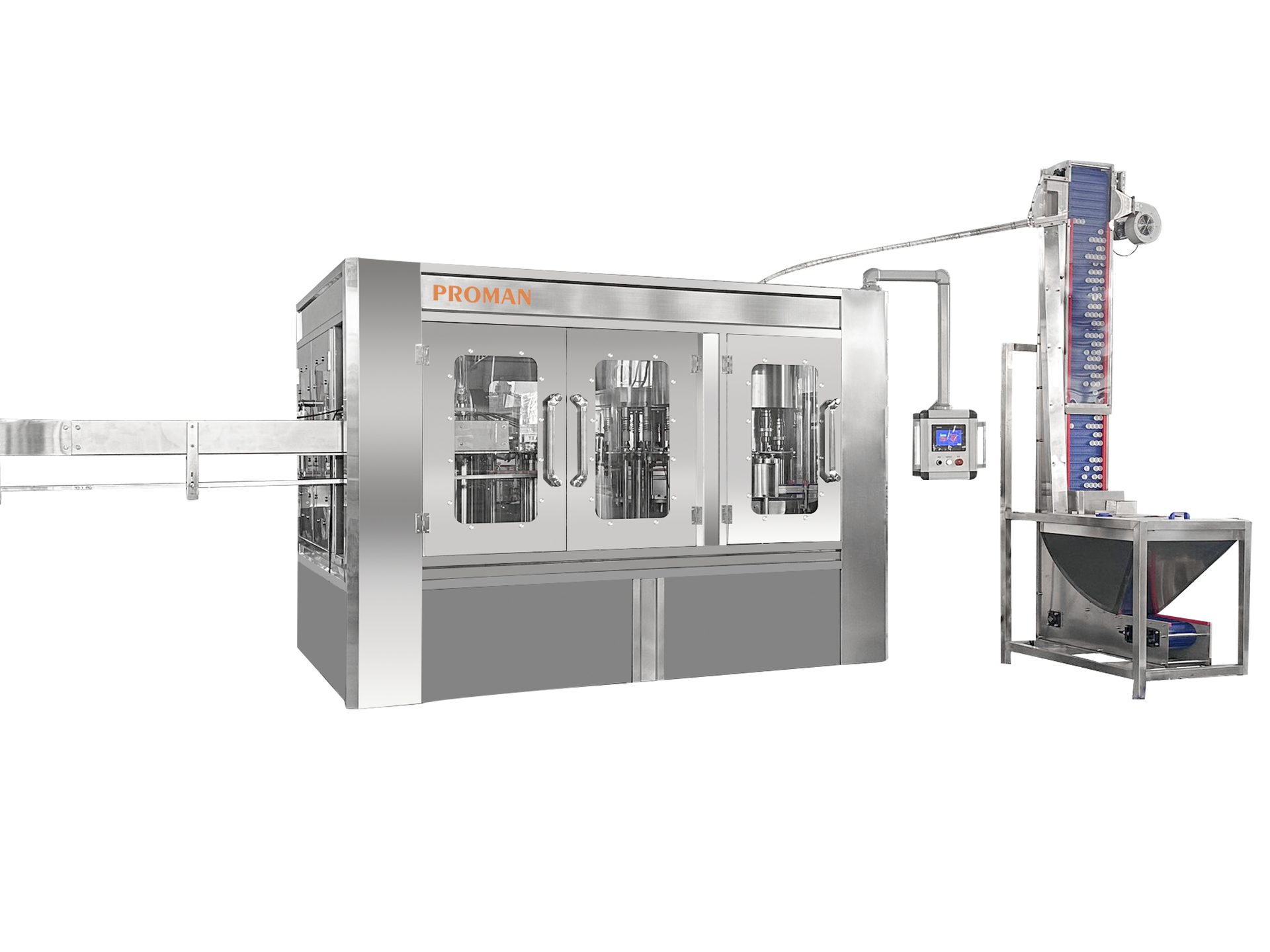

Beverage Filling Machine
Product Introduction
The machine is mainly used for washing, filling and sealing non-aerated
carbon dioxide drinks such as mineral water, pure water, non-gas wine drink and so on. The machine
design is shorten the time for the drink material contact with outside, increase the sanitation
condition throughout economy benefit.
Capability Character
It adopts hanging type conveying-bottle structure to make changing bottle
model more convenient, faster and easier. The main machine adopts advanced PLC control technology,
and the key electric elements adopt international famous products.
Technical Parameters
Not sure which model fits your plant? As a general rule: choose
CGF8-8-3 for a
start-up line below 3,000 BPH, CGF16-16-5 for a growing market around 8,000 BPH, and CGF32-32-10 or
above for industrial bottling plants above 15,000 BPH. Full specifications are listed below — our
engineers can also customize the configuration according to your bottle, cap and water source.
| Model |
CGF8-8-3 |
CGF12-12-4 |
CGF16-16-5 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-12 |
| Capacity (BPH, 500ml) |
2000-3000 |
4000-5000 |
6000-8000 |
10000-12000 |
15000-18000 |
20000-24000 |
| Suitable Bottle Diameter (mm) |
Ø50–Ø95 |
| Suitable Bottle Height (mm) |
H150–H310 |
| Filling Accuracy |
±1% (liquid level controlled) |
| Total Power (kW) |
3.5 |
4.5 |
5.5 |
7.5 |
11 |
15 |
| Air Pressure (MPa) |
0.25–0.30 (clean, oil-free compressed air) |
| Water Consumption (kg/h) |
300 |
500 |
800 |
1200 |
1800 |
2500 |
| Overall Dimension (mm) |
2200×1400
×2200 |
2600×1650
×2300 |
3100×1900
×2400 |
4000×2300
×2500 |
5200×2900
×2600 |
6200×3400
×2700 |
| Weight (kg) |
2500 |
3200 |
4200 |
5500 |
7500 |
9800 |
Note: Customized capacity, bottle molds and voltage (380V/50Hz, 220V/60Hz,
415V/50Hz etc.) are available to match your local power supply and workshop layout.
